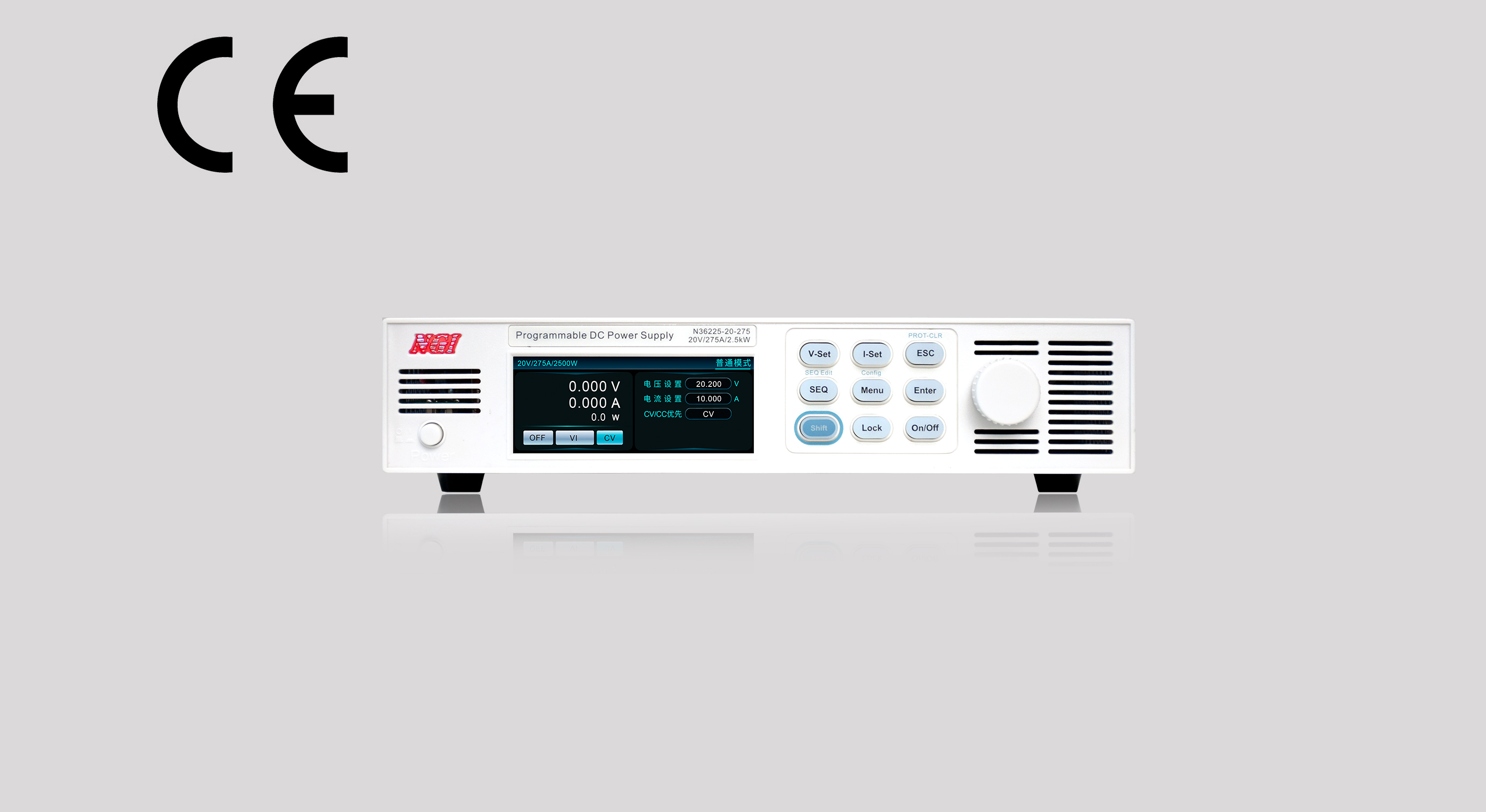

N36216-1500-02宽范围可编程直流电源 1500V 2A 1,600W
N36200系列可编程直流电源是一款薄型机架式设计、高性能、高功率密度的宽范围直流电源。该系列采用宽范围+高功率密度设计，1U全宽机箱输出功率可达5000W，2U全宽机箱输出功率可达10kW，可以覆盖多种规格DUT的测试应用。N36200系列采用标准19英寸1U/2U的机架式设计，无论是桌面使用，还是集成测试系统，均有灵活、便捷的舒适体验。结合该系列电源高速动态响应、高精度输出及测量、多种测试功能，N36200系列可帮助客户实现更精准可靠、更简单高效的测试。
| 型号 | 通道数 | 电压 | 电流 | 功率 | 精度 | 分辨率 | 通讯接口 | 尺寸 |
|---|---|---|---|---|---|---|---|---|
| N36225-20-275 | 1 | 20V | 275A | 2,500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36235-20-350 | 1 | 20V | 350A | 3,500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 1U |
| N36250-20-550 | 1 | 20V | 550A | 5,000W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 1U |
| N362100-20-1100 | 1 | 20V | 1100A | 10,000W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/100mA | LAN/RS232/RS485/CAN | 2U |
| N36205-40-50 | 1 | 40V | 50A | 500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36209-40-50 | 1 | 40V | 50A | 900W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36216-40-80 | 1 | 40V | 80A | 1,600W | 电压0.03%+0.02%F.S../电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36225-40-135 | 1 | 40V | 135A | 2,500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36250-40-275 | 1 | 40V | 275A | 5,000W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1U |
| N362100-40-550 | 1 | 40V | 550A | 10,000W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 2U |
| N36205-80-25 | 1 | 80V | 25A | 500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36209-80-25 | 1 | 80V | 25A | 900W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36212-80-42 | 1 | 80V | 42A | 1,200W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36216-80-42 | 1 | 80V | 42A | 1,600W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36210-80-60 | 1 | 80V | 60A | 1,000W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36212-80-60 | 1 | 80V | 60A | 1,200W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36216-80-80 | 1 | 80V | 80A | 1,600W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36225-80-80 | 1 | 80V | 80A | 2,500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36232-80-160 | 1 | 80V | 160A | 3,200W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 1U |
| N36250-80-160 | 1 | 80V | 160A | 5,000W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 1mV/10mA | LAN/RS232/RS485/CAN | 1U |
| N36216-360-20 | 1 | 360V | 20A | 1,600W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 10mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36225-360-20 | 1 | 360V | 20A | 2,500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 10mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36216-750-04 | 1 | 750V | 4A | 1,600W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36225-750-04 | 1 | 750V | 4A | 2,500W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 10mV/0.1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36210-1500-01 | 1 | 1500V | 1A | 1,000W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 10mV/1mA | LAN/RS232/RS485/CAN | 1/2 1U |
| N36216-1500-02 | 1 | 1500V | 2A | 1,600W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 10mV/1mA | LAN/RS232/RS485/CAN | 1U |
| N36232-1500-04 | 1 | 1500V | 4A | 3,200W | 电压0.03%+0.02%F.S./电流0.1%+0.1%F.S. | 10mV/1mA | LAN/RS232/RS485/CAN | 1U |
■ 电子设备研发验证、产测
■ ATE自动测试系统
■ 汽车电子
■ 航空航天电子
■ DC/DC电源
■ 半导体功率器件
■ 线束连接器
■ 机器人
■ 氢能
■ 超导
